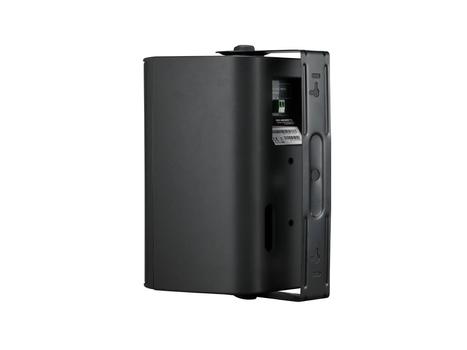

DESCRIPTION: | 2-way powered speaker |
BUILT IN POWER AMPLIFIER: | 2 x 30W RMS; 2 x 60W continuous program |
FREQUENCY RANGE: | 50Hz to 20kHz @ -10dB |
FREQUENCY RESPONSE: | 90Hz to 20kHz @ ±3dB |
WOOFER: | 5 1/4” polypropylene cone with rubber edge woofer |
TWEETER | 1" Titanium dome tweeter |
SENSITIVITY: | 87dB SPL, 1W@1m for 1k Hz |
MAX SPL: | Continuous: 102dB Peak: 105dB |
POWER SOURCE: | 100-240V AC 50/60Hz |
CROSSOVER FREQUENCY: | 2kHz |
DIRECTIVITY FACTOR (Q): | 4.0 averaged 1kHz to 10kHz @ 100 Degrees |
DIRECTIVITY INDEX (DI): | 6.0dB averaged 1kHz to 10kHz @ 100 Degrees |
INPUT CONNECTORS: | Line level unbalanced stereo audio on a 3.5mm TRS connector |
| Line level balanced stereo audio on a terminal block connector |
| Line level unbalanced stereo audio on left and right RCA connectors |
OUTPUT CONNECTORS: | Speaker (to connect to the external passive speaker) |
| 3.5mm mini jack lineout for optional sub-woofer |
| 3.5mm mini jack Loop output |
DAMPING FACTOR: | >100 @ 8Ω/400Hz |
S/N RATIO: | > 83dB |
THD: | < 0.2% |
CONTROLS: | Volume, bass and treble |
INPUT POWER: | ON,OFF or AUTO |
STANDBY MODE POWER CONSUMPTION: | 0.3W |
INPUTS SIGNAL FOR SYSTEM “WAKE- UP” FROM STANDBY MODE: | ≥10mV |
MATERIALS: | Aluminum grill, steel brackets, ABS cabinet |
WEIGHT PER SINGLE SPEAKER: | 3,8KG |
WEIGHT WITH MOUNTING KIT: | 3,9KG |
SHIPPING WEIGHT (FOR PAIR): | 8,15KG |
DIMENSIONS: | 19.2cm x 18.5cm x 28.5cm (7.2” x 6.7” x 9.6”) W, D, H |
DIMENSIONS WITH MOUNTING BRACKETS: | 19.2cm x 23.5cm x 28.8cm (7.2” x 6.7” x 9.6”) W, D, H |
HOLE SPACING THIRD PARTY MOUNTING BRACKETS: | 70mm using M6 bolts |
INSTALLATION CLEARANCE: | Front panel to wall (with mounting bracket): 24cm (9.5in) Back panel to wall (with mounting bracket): 4.5cm (1.8in) |
INCLUDED ACCESSORIES: | 1 pair of U-shaped rotating mounting brackets |
| 3m (9.84ft) power cord; 4m (13.12ft) loudspeaker cable; and a 3m (9.84ft) 3.5mm to 2 RCA cable |
OPTIONAL ACCESSORIES: | Third party mounting brackets, for example K&M 24141 |
COLORS: | Available in white or black |
CERTIFICATIONS | CE, RoHS |
