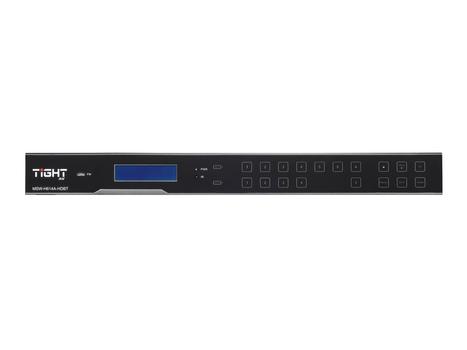

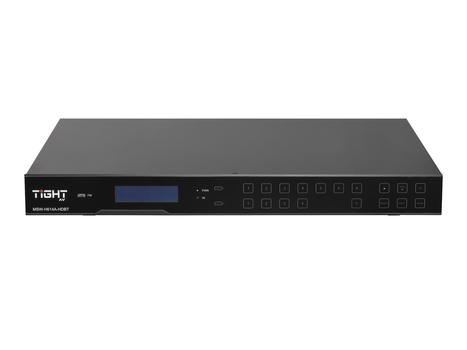

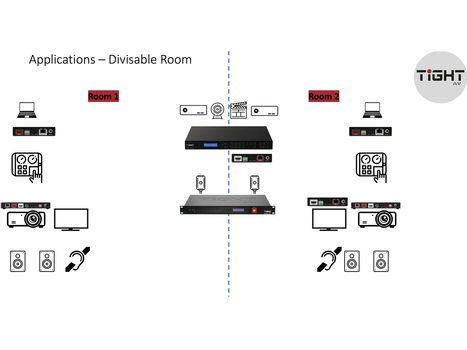

Video |
Video Input | (4) HDMI, (2) HDBT |
Input Connector | (4) Type-A female HDMI, (2) RJ45 |
HDMI Input Resolution | Up to 4K@60Hz 4:4:4, HDR10, Dolby Vision |

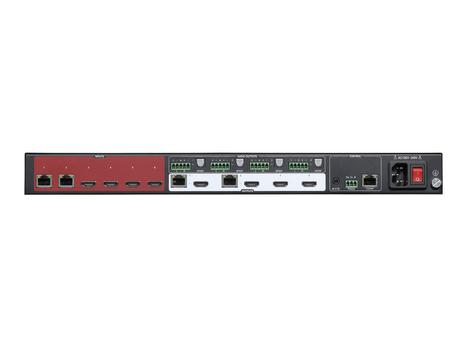

Video Output | (4) HDMI, (2) mirrored HDBT |
Output Connector | (4) Type-A female HDMI, (2) RJ45 |
HDMI Output Resolution | Up to 4K@60Hz 4:4:4, HDR10, 1080p 3D. Supports 4K to 1080p auto-downscaling. |
HDBaseT Output Resolution | Up to 4K@60Hz 4:4:4 (using compatible receivers) |
HDMI Standard | HDMI 2.0b |
HDCP Version | HDCP 2.x/1.x |
Audio
|
HDMI Embedded Audio Format | LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™ pass-through. |
Audio Output | (4) Stereo analog L+R audio, (4) Digital SPDIF audio |
Output Connector | (4) 5-pin terminal blocks, (4) Toslink connectors |
Analog L+R Audio Format | Supports PCM |
Digital SPDIF Audio Format | Supports PCM, Dolby Digital, DTS, DTS-HD |
Local Audio Sampling Rate | Supports 44.1KHz, 48KHz, 96KHz |
Frequency Response | 20Hz – 20KHz, ±3dB |
Audio Output Impedance | 70Ω |
Max Input Level | L+R: 2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316mV) nominal consumer line level signal. SPDIF:±0.05dBFS. |
THD+N | < 0.05% (-80dB), 20Hz – 20KHz bandwidth, 1KHz sine at 0dBFS level (or max level). |
SNR | L+R: > 80dB, 20Hz - 20KHz bandwidth. SPDIF: > 90dB, 20Hz - 20 kHz bandwidth. |
Crosstalk Isolation | SPDIF: < -120 dB, 10KHz sine at 0dBFS level (or max level before clipping). L+R: < -60 dB, 10KHz sine at 0dBFS level (or max level before clipping). |
L-R Level Deviation | L+R: < 0.3dB, 1KHz sine at 0dBFS level (or max level before clipping). |
Frequency Response Deviation | < ± 0.5dB 20Hz - 20KHz. |
Output Load Capability | L+R: 1KΩ and higher (Supports 10x paralleled 10KΩ loads). |
Control
|
