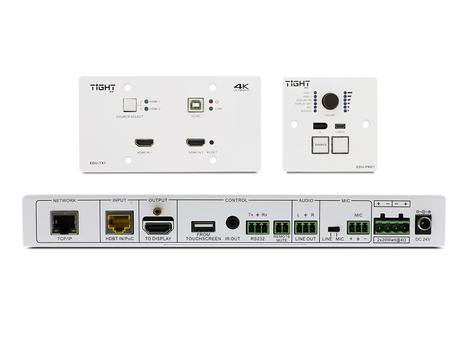

TightAV EDU-H201AUC-KIT (EDU-RX1, EDU-TX1, EDU-PAD1) | All-In-One HDBT Eductional Kit
Tuotekoodi:
EDU-H201AUC-KIT
|

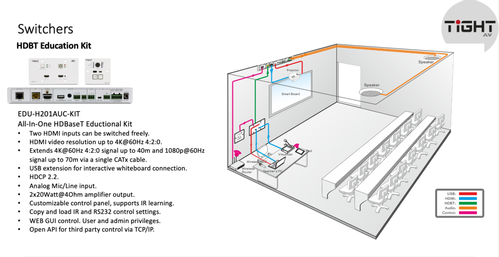

KEY FEATURES:
• Two HDMI inputs can be switched freely.
• HDMI video resolution up to 4K@60Hz 4:2:0.
• Extends 4K@60Hz 4:2:0 signal up to 40m and 1080p@60Hz signal up to 70m via a single CATx cable.
• USB extension for interactive whiteboard connection.
• HDCP 2.2.
• Analog MIC/Line input.
• 2 x 20 Watt@4Ohm amplifier output.
• Customizable control panel, supports IR learning.
• Copy and load IR and RS232 control settings.
• WEB GUI control.

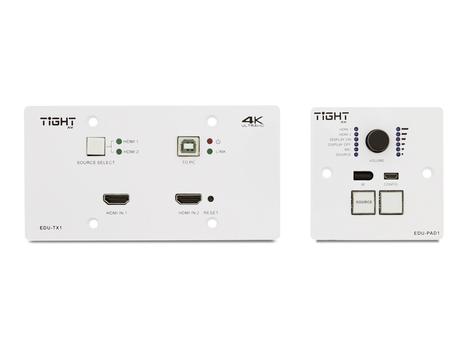

EDU-TX1 Transmitter
Video |
Video Input | (1) HDMI IN 1, (1) HDMI IN 2 |
Video Input Connector | (2) 19-pin type-A female HDMI |
Video Output | (1) PoC IN/HDBT OUT, (1) POWER/RS232 |
Video Output Connector | (2) RJ45 |
Control |
Control Port | (1) TO PC, (1) FIRMWARE |
Control Connector | (1) Type-B USB, (1) Micro USB |
General |
Video Resolution | Up to 4K@60Hz 4:2:0 |
Transmission Mode | HDBaseT |
Transmission Distance | CAT5e/6: 4K@60Hz 4:2:0 ≤ 35 meters (115 feet), 1080p@60Hz ≤ 60 meters (197 feet) |
CAT6a/7: 4K@60Hz 4:2:0 ≤ 40 meters (131 feet), 1080p@60Hz ≤ 70 meters (230 feet) |
Bandwidth | 10.2Gbps |
HDMI Version | 1.4 |
HDCP Version | 2.2 |
Operation Temperature | -5~ +55℃ |
Storage Temperature | -25 ~ +70℃ |
Relative Humidity | 10%-90% |
Dimension (W*H*D) | 105mm x 89mm x 44mm |
Net Weight | 242g |

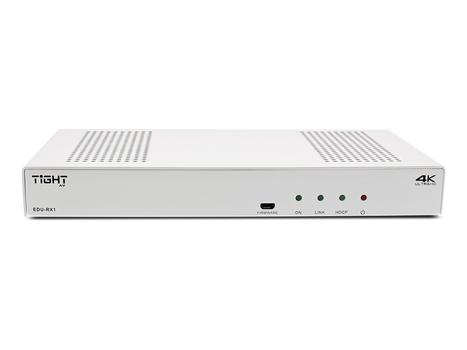

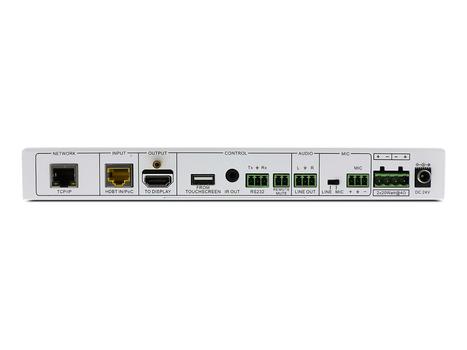

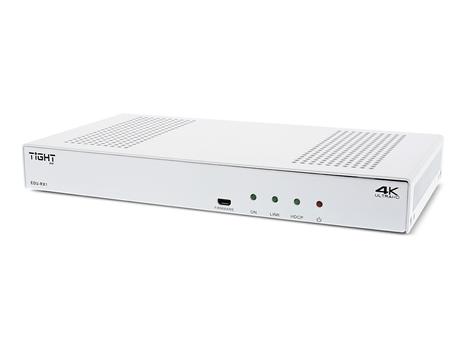

EDU-RX1 Receiver
Video |
Video Input | (1) HDBT IN/PoC |
Video Input Connector | (1) RJ45 |
Video Output | (1) TO DISPLAY |
Video Output Connector | (1) 19-pin type-A female HDMI |
Audio |
Audio Input | (1) MIC |
Audio Input Connector | (1) 3-pin terminal block |
Audio Output | (1) 2x20Watt@4Ω, (1) LINE OUT |
Audio Output Connector | (1) 4-pin terminal block, (1) 3-pin terminal block |
Audio Format | HDMI embedded audio: PCM/Dolby/DTS MIC input audio: PCM Analog output audio: PCM |
Control |
Control | (1) TCP/IP, (1) FROM TOUCHSCREEN, (1) IR OUT, (1) RS232, (1) REMOTE MUTE |
Control Connector | (1) RJ45, (1) Type-A USB, (1) 3.5mm mini jack, (1) 3-pin terminal block, (1) 2-pin terminal block |
General |
Video Resolution | Up to 4K@60Hz 4:2:0 |
Transmission Mode | HDBaseT |
Transmission Distance | CAT5e/6: | 4K@60Hz 4:2:0 ≤ 35 meters (115 feet), 1080p@60Hz ≤ 60 meters (197 feet) |
CAT6a/7: | 4K@60Hz 4:2:0 ≤ 40 meters (131 feet), 1080p@60Hz ≤ 70 meters (230 feet) |
Bandwidth | 10.2Gbps |
HDMI Version | 1.4 |
Power Supply | Input:100V~240V AC; Output: 24V DC 2.71A |
Power Consumption | 55W (Max) |
Operation Temperature | -5~ +55℃ |
Storage Temperature | -25 ~ +70℃ |
Relative Humidity | 10%-90% |
Dimension (W*H*D) | 250mm x 31mm x 130mm |
Net Weight | 682g |
EDU-PAD1 Control Panel
Port |
Program Port | (1) CONFIG, (1) POWER/RS232 |
Output Port | (1) Type-A USB, (1) RJ45 |
Other | (1) Volume Knob, (2) Buttons (SOURCE, DISPLAY ON/OFF), (1) Built-in IR sensor |
Operation Temperature | -5~ +55℃ |
Storage Temperature | -25 ~ +70℃ |
Relative Humidity | 10%-90% |
Dimension (W*H*D) | 80mm x 80mm x 37mm |
Net Weight | 124g |
