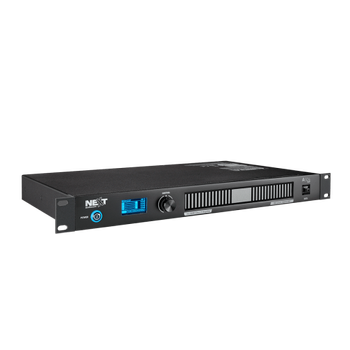

The A504DSP combines a lightweight, 4 x 500W (2 x 1000W) amplifier, with a powerful DSP engine that can be configured to suit a wide range of tasks, without the need for additional equipment, to drive a wide range of loudspeaker systems. The close integration of processing and amplification allows the DSP to monitor and better adapt to amplifier behavior, making dynamics processing far more accurate and effective than that typically achieved with separate components.
Product Type
Class D Amplifier with DSP
Frequency Response
20Hz - 20kHz (+0 / -1dB)
Amplifier Technology
Class D
Number of Amplifier Channels
4 Channels
Amplifier Power - Stereo 8Ω
4 x 250W
Amplifier Power - Stereo 4Ω
4 x 500W
Amplifier Power - Bridge 8Ω
2 x 1000W
Amplifier Power - 100V
2 x 1000W
Speaker Output
4Ω - 16Ω | 100V
SNR (Signal to Noise Ratio)
>95dB
Input Sensitivity
0.9V - 1.1V (+0 / -1dBv)
Input Impedance
Balanced: 20kΩ | Unbalanced: 10kΩ
DSP Technology
4 IN x 4 OUT - 32bit | 192kHz DSP
DSP Adjustable Parameters
PEQ, HPF, LPF, HSF, LSF, Compressor, Gate, Level, Delay, Polarity, Mute
Delay Adjustment
62.4ms / 21.42m per Channel
Control Type
On the Amplifier Encoder and LCD | Via USB and Suplied Software "A504 DSP Controller"
Audio Signal Inputs
Analog Audio
Input Connectors
4 x Neutrik XLR
Speakers Output Connectors
4 x Neutrik NL4
Protections
Full short circuit, open circuit, thermal, ultrasonic, and RF protection stable into reactive or mismatched loads, turn ON/OFF, muting, tried crowbar
Operating Temperature Range
0ºC - 40ºC
Cooling Type
Speed Controlled Fan
Power Supply
Switching Mode Power Supply (SMPS)
Power Input
AC 110V - 120V | AC 220V - 240V 50Hz/60Hz ±10%
Mains Connector
Standard IEC socket
Dimensions (WxHxD)
483 x 44 x 290mm (19 x 1.73 x 11.4 in)
