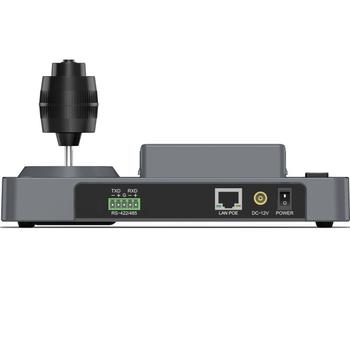

Kato Vision Mini joystick Camera Controller, NDI
Hinnat näkyvät vain verkkokauppaan kirjautuneille käyttäjille.
|
|
Kato Vision Mini joystick Camera Controller, NDI
Reaaliaikainen kamerakuva 3" näyttöllä, "One-click" lukitus, kameraparametrien näyttö, NDI, VISCA, VISCA over IP, VISCA TCP, PELCO P/O, Onvif ohjausprotokollat
|
| Keyboard Parameters |
| Joystick | 4D precision Joystick |
| Knobs | 3D knobs, support scale rotation to adjust parameters, support button function to select mode |
| Buttons | High-quality silicone buttons, support white and red two-color backlight |
| Screen | 3″ LCD color display |
| Display | HDMI 4K@30 video output display (Not standard version) |
| Button Prompt Tone | Button sound prompt On/Off |
| Lock Button | Support one-key lock function |
| Max. Control Quantity | 1000 |
| Max.Preset Position | 255 |
| Customized Knob |
| Horizontal Speed | Support |
| Tilt Speed | Support |
| Zoom Speed | Support |
| Aperture | Support |
| Shutter | Support |
| Gain | Support |
| Exposure Mode | Support |
| Red Gain | Support |
| Blue Gain | Support |
| Keying | Support |
| Wb Mode | Support |
| Wb Speed | Support |
| Gain Limit | Support |
| Maximum Shutter Speed | Support |
| Minimum Shutter Speed | Support |
| Auto Exposure Speed | Support |
| Exposure Compensation | Support |
| Blc | Support |
| Ir Filter | Support |
| Nd Filter | Support |
| Gamma Curve | Support |
| Gamma Offset | Support |
| Gamma Pattern | Support |
| Anti-Flicker | Support |
| Noise Reduction Mode | Support |
| Noise Reduction Value | Support |
| Ptz Reset | Support |
| Digital Zoom | Support |
| Auto Focus | Support |
| Manual Focus | Support |
| Camera | Support |
| User Instructions | Support |
| Control |
| Control Interface | RJ45(support POE and NDI HX2), RS-422/485 |
| IP Control Protocol | Onvif, VISCA Over IP, VISCA TCP, NDI® |
| Serial Port Protocol | VISCA, Pelco D, Pelco P |
| Power Supply |
| Input Voltage | 12V |
| Input Current | 1.5A |
| POE | 802.3af |
| Rated Power | 18W |
| General Specifications |
| Operating Environment | Indoor |
| Operating Temperature | -10℃ -40℃ |
| Storage Temperature | -20℃-60℃ |
| Dimension | (W)210*(D)138*(H)101mm (Joystick height is included) |
| Weight | 0.8 kg |
