Features
4D precise Joystick+3D knobs+ergonomic zoom button:
Camera parameters control such as white balance, exposure, focus and zoom etc.
Built-in 3-inch color screen:
Support real-time PVW of current camera viewing through up streaming (NDI|HX2 and RTSP only).
Supports HDMI output for large screen display:
Real-time preview through the HDMI interface, supporting up to 4KP30 ultra high definition resolution;
Support 7 cameras selection shortcuts:7 camera shortcuts can be set quickly according to requirements; Up to 1000 cameras information can be saved.
Newly upgraded UI operation interface:
Display main parameters of cameras directly, personalize stylish interface casually.
Remote control of PTZ camera menu:
Open camera’s menu quickly and combine PVW screen or image screen to control.
* This function is recommended to be used with our camera.
White and red backlight silicone buttons:
High-quality silicone, excellent touch, support white and red backlight so it can be operated smoothly in a low-light environment; support letters and common characters input and other operations such as editing camera’s name and address.
Support buttons lock via one click:
Lock buttons via one click to avoid misoperation.
Multiple control protocols, apply to abundant venues:
Support VISCA, VISCA Over IP, VISCA TCP, PELCO P/D, Onvif and NDI, support automatic protocol recognition.
* Additional licenses are required to upgrade the NDI function, please consult the manufacturer for details.

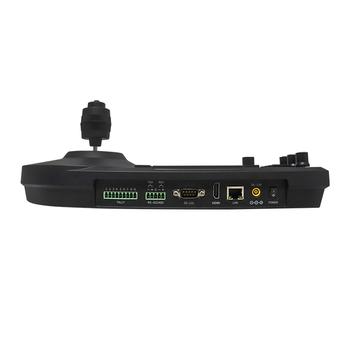

Abundant interfaces, multiple connection methods:
External RS-232, RS422/485 serial port and RJ45 network interface. The network interface supports POE function, thereby reducing wiring trouble.
External tally interface:
Support up to 8 tally channels.
Support customizable buttons:
Support customizable buttons F1, F2, can set the best operation function according to requirement.
