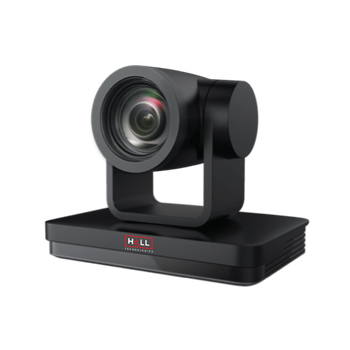

Hall Technologies Video Conference Camera - Video Conference Camera PTZ

Tuotekoodi:

HT-CAM-1080PTZ

Video Conference Camera PTZ

Full HD Resolution: 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920×1080 with frame rate up to 60 fps.
Optical Zoom Lens: 12X optical zoom lens.
Leading Auto Focus Technology: Fast, accurate and stable auto focusing technology.
Low Noise and High SNR: Super high SNR image is achieved with low noise CMOS. Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity.
Multiple video output interfaces: HDMI, SDI, CVBS, LAN. Simultaneously output audio and video signal via HDMI, SDI and LAN. LAN interface support POE, USB 3.0 support dual code stream, SDI support transmission up to 100m under 1080P60 format
Multiple Audio/Video Compression Standards: Support H.264/H.265 video compression, up to 1920 1080 resolution 60fps; support AAC, MP3 and G.711A audio compression, 8000, 16000, 32000, 44100, 48000 sampling frequency
USB3.0 Support Dual Coding Stream: Support main stream and sub-stream, and simultaneous output; support YUY2, MJPEG, H.264, NV12, H.265 video coding format
Built-in Gravity Sensor: support PTZ auto-flip function and easy installation.
Multiple Network Protocol: support ONVIF, GB/T28181, RTSP, RTMP, VISCA OVER IP, IP VISCA, RTMPS, SRT protocols; Support RTMP push mode easy to be connected to streaming server (Wowza, FMS); Support RTP multicast mode.
Control Interface: RS422 is compatible with RS485, RS232-IN, RS232-OUT, and the RS232interface supports cascading.
Multiple Control Protocol: Support VISCA, PELCO-D, PELCO-P protocols; Support automatic identification protocols.
Quiet Pan / Tilt Movement: with high accuracy step driving motor, camera can pan / tilt extremely quiet and smooth.
Various remote controls: Users can choose infrared remote control or wireless remote control according to the environmental conditions used. The 2.4G wireless remote control is not affected by angle, distance, and infrared interference. Support the remote control signal transparent transmission function, which is convenient for back-end equipment to use.
Multiple Application: Online-education, Lecture Capture, Webcasting, Video conferencing, Tele-medicine, Unified Communication, Emergency command and control systems, etc.

Camera Perameter
Perameter/Model	12X
Focus	3.9-46.8mm
FOV	6.3° (N) 72.5° (W)
Aperture Value	F1.8 - F2.4
Effective Pixels	2.07, 1/2.8 inch high-quality CMOS sensor
Video Format	Video Format 1920×1080/1280×720/1024×576/800×600/800×448/640×360/640×480/480×270/320× 180@30/25/20/15/10/5fps; MJPG/H264: 1920×1080/1600×896/1280×720/1024×576/960×540/800×600/800×448/720×576/720 ×480/640×360/640×480/480×270/352×288/320×240@30/25/20/15/10/5fps; Sub-stream：YUY2/NV12: 1920×1080/1280×720/1024×576/800×600/800×448/640×360/640×480/480×270/320× 180@30/25/20/15/10/5fps; MJPG/H264: 1920×1080/1600×896/1280×720/1024×576/960×540/800×600/800×448/720×576/720 ×480/640×360/640×480/480×270/352×288/320×240@30/25/20/15/10/5fps;
Minimum Illumination	0.5Lux (F1.8, AGC ON)
DNR	2D & 3D
AWB	Automatic, manual, one-key white balance, specified color temperature
Focus Mode	Automatic, manual, one-key focus
Exposure mode	Auto, manual, shutter priority. aperture priority. brightness priority
Iris value	F1.8 -F11, CLOSE
Shutter Speed	1/25 - 1/10000
BLC	on/off
Dynamic range	Off, 1-8
Image adjustment	Brightness, chroma, saturation, contrast, sharpness, black and white mode, gamma curve
SNR	≥50dB
Interface
Product Interface	HDMI、LAN(POE)、USB3.0（B Type，Compatible with USB2.0）、SDI、A-IN、RS232-IN、 RS232-OUT、RS422（Compatible with RS485）、Rotary Switch、DC12V Power
Video Encoding Format	LAN Interface：Support main stream and sub-stream H.265, H.264 USB3.0 Interface：main stream support YUY2、MJPG、H264、NV12
Audio input interface	Dual channel 3.5mm linear input
Audio output interface	HDMI,SDI, LAN, USB3.0
Audio compression	AAC, MP3, G.711A
LAN interface	10M/100M/1000M adaptive Ethernet port, support POE power supply, support audio and video output
Network Protocol	RTSP, RTMP, ONVIF, GB/T28181, VISCA OVER IP, IP VISCA, RTMPS, SRT Support remote upgrade, remote restart, remote reset
Control interface	RS232-IN, RS232-OUT, RS422 compatible with RS485
Serial Communication protocol	VISCA/Pelco-D/Pelco-P; support baud rate 115200/38400/9600/4800/2400
USB Communication protocol	UVC（video communication protocol），UAC（audio communication protocol）
Power interface	HEC3800 Power socket (DC12V)
Power adapter	Input AC110V-AC220V； output DC12V/2.5A
Input voltage	DC12V±10%
Input currency	≤1A
Consumption	≤12W
PTZ
Pan rotation	-170° -+ 170°
Tilt rotation	-30° -+ 90°
Pan speed	0.1°/s -- 100°/s
Tilt speed	0.1°/s -- 45°/s
Preset speed	Pan：100°/s，Tilt：45°/s
Preset quantity	Maximum 255 preset positions can be set (10 via remote controls)
Other Parameter
Storage temperature
Storage humidity	20% - 95%
Working temperature	-10℃ -- +50℃
Working humidity	20% - 80%
Dimension	181mm x 115mm x 149mm
Weight	1.15kg
Environment	Indoor
Accessory
Standard accessory	Power adapter, RS232 control line, USB3.0 connection line, remote control, manual, warranty card & certificate
Optional accessory	Ceiling mounting bracket, wall mounting bracket
