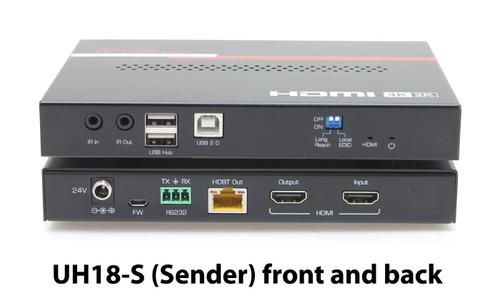

Hall Technologies HDMI, USB, LAN over UTP Extender with HDBaseT and PoC (Sender) - HDMI + USB + LAN over UTP Extender with HDBaseT and PoC (Sender)
Hinnat näkyvät vain verkkokauppaan kirjautuneille käyttäjille.
|
|
Hall Technologies HDMI, USB, LAN over UTP Extender with HDBaseT and PoC (Sender) - HDMI + USB + LAN over UTP Extender with HDBaseT and PoC (Sender)
4K Video and USB HDBaseT 2.0 Extender Sender
|
Kuvaus
Tarvikkeet
Tuki info / Lataa
- Extends 4K@60Hz up to 100 m and 1080p@60Hz up to 150m
- HDMI 2.0, HDCP 2.2 compliant and supports HDR10
- Perfect for KVM Extension (accessing a PC from a remote location)
- HDMI loop-output on the Sender
- Audio Extraction on the Receiver(Analog and SPDIF)
- Support LPCM 7.1, DTS-HD, Dolby-HD
- Fully compliant with HDBaseT™ 2.0 specifications
- Bi-directional IR and RS-232 Pass through
- Plug and Play Installation – takes minutes to setup
- EDID Management
- Only one power supply needed (power is sent over UTP cable to other side)
- Perfect for Server Rooms with local and remote access to the PCs
Kuvan- ja äänensiirto / Extenderit
| Video | Standards
HDMI 1.4/2.0 and HDCP 1.4/2.2
Resolutions
DTV/HDTV up to 4K@60 YUV 4:4:4
|
| Audio | HDMI
LPCM 2/5.1/7.1CH, Dolby Digital 2~5.1CH, DTS 2~5.1CH, Dolby TrueHD and DTS-HD Master Audio
Extraction
Analog (Line Level) and SPDIF
Note: Analog output is only active when the HDMI Audio is 2-channel. SPDIF output is always active regardless of audio format of 2.0, 5.1 or 7.1 channels |
| Peripherals | RS-232
Full Duplex Pass-through at any baud rate
USB
Supports all USB 2.0/1.1 Devices
IR
Bi-directional Pass-through 56K carrier |
| Power | Input
100-240 VAC, 50-60 Hz 0.8 A (US/EU Standard, CE/FCC/UL Certified)
Output
24 VDC @ 1.0 A
Consumption
14 Watts
Type
DAL POC (Power only required at one end) |
| Temperature | Storage: +32 to +140 °F (0 to 40 °C) / 5% to 90%, non-condensing
Operating: +32 to +104 °F (0 to 40 °C) / 5% to 90%, non-condensing
|
| Enclosure | Metal (Steel) |
| Dimensions | 6.87” (172.4 mm) W × 4.45” (113.2 mm) D × 0.95” (24 mm) H
All protrusions included
|
| Weight | Product
1.3 Lbs
Shipping
5.2 Lbs (Sender + Receiver) |
| Safety | CE |
| EMI/EMC | CE, FCC Class A |
| MTBF | 90,000 estimated |
| Warranty | 3 years parts and labor |
Huomioi, että kuva on suuntaa-antava ja varsinainen tuote saattaa ulkoasultaan poiketa tuotekuvasta (esim. tietokoneisiin ei välttämättä sisälly näyttöä, vaikka kuvassa sellainen olisikin). Jos tuotenimikkeessä on eri tiedot kuin tuotekuvauksessa, tuotenimikkeen tieto on oikein. Jos jokin asia jää epäselväksi, lähetä sähköpostia tukeen ennen tuotteen tilaamista.
