| Input Resolution | VGA or 480p to Full HD 1080P@60
640x480@60, 800x600@60, 1024x768@60, 1280x1024@60 1440x900@60, 1680x1050@60, 1360x768@60, 1366x768@60, 1400x1050@60, 1680x1050@60, 1920x1080@60 |
| Video Encoding | H.264 |
| Streaming Protocol | RTP/MPEG-TS/UDP |
| Casting | Unicast/Multicast |
| Control Interface | Telnet, Embedded Web Server |
| Video Latency | 250-400 mS, dependent on Bit Rate |
| Input Ports | Sender 1x HDMI Receiver 1x RJ45 1x IR Wall Plate 1x HDMI |

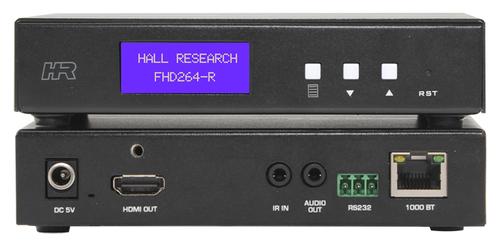

| Output Ports | Sender 1x RJ45 1x IR 1x L/R AUDIO 1x RS-232 Receiver 1 x HDMI 1 x L/R AUDIO 1 x RS-232 Wall Plate 1 x RJ45 1 x IR 1 x L/R AUDIO 1 x RS-232 |
| Baud Rate | Bidirectional, pass thru 2400 - 115200 bps |
| Audio | HDMI Stereo 2-channel Supports LPCM 2, 5.1, 7.1 Channel up to 48 kHZ |
| IR Frequency | 38-56 KHZ pass-thru modulated
56 KHZ (IR Remote Controller) |
| Video Sources | Up to 64 |
| Video Displays | Up to 250+ |
| Recommended Network Switch/Router | Gigabit LAN IGMPv2, Jumbo Frame and DHCP support |
| Operating Temp | +32 to +113F (0 to +45℃) 20-90%, non-condensing |
| Power Consumption | Max. 3 W |
| Mounting Option | Mounting Brackets (included) |
| Dimensions | 5.40”(137 mm) W x 3.14”(80.0 mm) D x 1.38” (35 mm) H |
| Net Weight | TX (Unit) : 0.75 lbs (0.34 KG) RX (Unit): 0.75 lbs (0.34 KG) |
