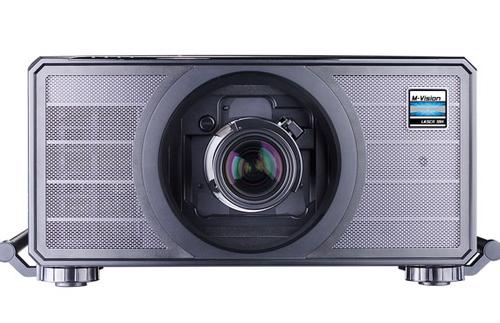

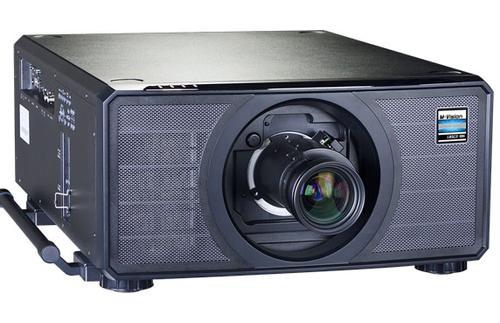

DIGITAL PROJECTION M-Vision Laser 18k - WUXGA 1920 x 1200, 18.000 Lumen 10.000 : 1 Contrast
Etusivu
Projektorit
WUXGA
DIGITAL PROJECTION M-Vision Laser 18k - WUXGA 1920 x 1200, 18.000 Lumen 10.000 : 1 Contrast
Hinnat näkyvät vain verkkokauppaan kirjautuneille käyttäjille.
|
|
DIGITAL PROJECTION M-Vision Laser 18k - WUXGA 1920 x 1200, 18.000 Lumen 10.000 : 1 Contrast
WUXGA (1920 x 1200), 18.000 Lumen, 10.000 : 1 Contrast (dynamic)
|
Kuvaus
Tarvikkeet
Tuki info / Lataa
16,000 ANSI / 18,000 ISO Lumens | Contrast Ratio: 10,000:1 (Dynamic Black) |
6,000 ANSI / 18,000 ISO Lumens | Contrast Ratio: 10,000:1 (Dynamic Black) | Part Number: 118-053
| Colour System: | DMD Specification:
|
Blue Laser Phosphor + 4-segment colour wheelDisplay Type:
| | 1 x 0.96" DarkChip™ DMD™ |
| 1920 x 1200 pixels native display.
Fast transit pixels for smooth greyscale and improved contrast.
Aspect Ratio:
16x10
Fill Factor
87% |
Key Features
Video & Graphics Processing
- HDMI 1.4b for Side by Side, Frame Packing, Frame Sequential & TopBottom 3D Formats.
- Dual Flash Processing can be used to multiply the displayed frame rate for 3D sources.
- Dual Pipe Processing: Two sources in parallel for Left and Right eyes.
- Synchronisation of active glasses.
- 3G-SDI with loop-through.
- 24p and 1080p native display.
Geometry Correction
- Cornerstone, Vertical & Horizontal Keystone, Pincushion & Barrel, and Image Rotation.
- Blanking control for custom input window sizing.
- Scaling for fixed aspect ratio screens.
Edge Blending
- Correction for non-active pixels at the edge of the display.
Picture in Picture
- Two sources can be displayed either one within the other (PIP) , or side by side, with the original aspect ratios maintained.
HDBaseT® Interface
- Built in support for transmission of uncompressed High Definition Video over standard CAT5e/6 LAN cable.
- Allows the projector to be placed up to 100m from source with low cost cabling.
Colour Processing
- Powerful seven-point colour correction for accurate colour matching.
Projector Controller Software
- Intuitive user interface for network control.
- Simultaneous control of user-defined groups of projectors.
- At-a-glance monitoring of projector status.
Projector Automation
- Real-time clock provides daily on/off automation.
Installation
- Integrated stacking mount pins.
- Eye bolts included for easy rigging.
|
Source Compatibility:
|
3GSDI is SMPTE 292M, SMPTE 259M-C and SMPTE 424M compliant.
HDMI including Deep Color™ processing.
Graphics standards up to 1920 x 1200 resolution at 60Hz via HDMI or DisplayPort. |
Inputs/Outputs
| Video & Computer |
Type | Connector | Qty |
DisplayPort 1.1a
HDMI 1.4a
3G-SDI in
3G-SDI out
HDBaseT (see LAN) | DisplayPort
HDMI
BNC
BNC
LAN RJ45 | 2
2
1
1
1 |
| Communication & Control |
Type | Connector | Qty |
3D Sync Out
3D Sync In
LAN
RS232
Wired Remote
12V Trigger
NOTE: The HDBaseT and LAN ports are not shared. | BNC
BNC
RJ45
9-pin D-Sub
3.5mm Stereo Jack
3.5mm Stereo Jack | 1
1
1
1
1
2 |
| 3D Formats Supported | HDTV Formats Supported |
Frame Packing
Dual Pipe
Frame Sequential
Side By Side (half)
Top and Bottom | 1080p (24Hz, 25Hz, 30Hz, 50Hz, 60Hz), 1080i (50Hz, 60Hz), 720p (50Hz, 60Hz) |
| Computer Compatibility | Bandwidth |
| Up to 1920 x 1200 | 165 MHz on analog RGB
165 Megapixels per second on HDMI |
| Remote Control | Automation Control |
Addressable IR Remote Control, wireless and wired
On-Board keypad | Crestron RoomView® Connected
PJLink Class 1
LAN
RS232
AMX (Device Discovery)
Served web page |
| Colour Temperature | Operation |
| 3200K to 9300K |  |
| illumination Type | Typical illumination Life |
| Laser Light Source | 20,000 hours |
| Lenses |
Lens | Part No. | Optimised Focus Range*
| Lens Shift |
| 0.9 - 1.2 : 1 zoom | 120-624 | 0.92m - 13.46m | Vert: 0.45 (U) 0.45 (D) frame, Hor: 0.15 (L) 0.15 (R) frame |
| 1.20 - 1.56 : 1 zoom | 120-625 | 1m - 17.5m | Vert: 0.5 (U) 0.5 (D) frame, Hor: 0.15 (L) 0.15 (R) frame |
| 1.50 - 2.00 : 1 zoom | 120-626 | 2m - 21.8m | Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.15 (L) 0.15 (R) frame |
| 2.00 - 4.00 : 1 zoom | 120-627 | 2.5m - 41.8m | Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.15 (L) 0.15 (R) frame |
| 4.00 - 7.00 : 1 zoom | 120-628 | 4m - 42m | Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.15 (L) 0.15 (R) frame |
* Lens focal ranges above are the optimised distances but are likely to focus further, please contact your RSM for more details. Lens ratio tolerances: E-Vision Series: +/-3%. HighLite Series: +/- 5%. M-Vision Series: +/- 2%. Titan Series: +/-2%, INSIGHT Series: +/-2%,
| Lens Mount |
Motorised shift, zoom and focus, with programmable shift |
| Mechanical Mounting | Orientation |
Front/Rear Table
Front/Rear Ceiling
Adjustable Front/Rear Feet | Table Top or Inverted: Yes
Pointing Up: Yes
Pointing Down: Yes
Roll (Portrait): Yes |
| Power Requirements | Power Consumption |
| 100 - 240VAC 50/60Hz single phase * Note that in 120V operation, the projector will be at 65% brightness | Typical 2000W @ 240VAC in Normal mode
Typical 1200W @ 240VAC in ECO mode
Typical 1200W @ 110VAC in Normal mode
Typical 1000W @ 110VAC in ECO mode |
| Thermal Dissipation | Fan Noise |
Typical 6482 BTU/Hour @ 220VAC in Normal mode
Typical 3753 BTU/Hour @ 110VAC in Normal mode | Normal mode: 45 dBA max, 42 dBA typical
Eco mode: 42 dBA max, 39dBA typical |
| Operating/Storage Temperature | Operating Humidity |
Operating: 0 to 40C (32 to 104F)
Storage: -20 to 60C (-4 to 140F) | 10% to 90% relative, non-condensing |
| Weight (Chassis Only) | Dimensions |
49 kg
108 lb | H: 24.8 cm W: 53.0 cm L: 69.5 cm
H: 9.8 in W: 20.9 in L: 27.4 in |
| Safety & EMC Regulations | |
UL/cUL, CB, CCC, FCC Class A , CE, RoHS 2
IEC EN 60825-1:2014 Class 1 Laser Product
IEC 60825-1:2007 Class 3R Laser Product
IEC EN 62471-5:2015 Risk Group 3 | |
| Accessories |
| Accessory | Part No. |
| Infrared Remote (replacement) | 117-780 |
*Dimensions included for reference only and are subject to change. Please download the full set of CAD files for this display for more accurate information.
