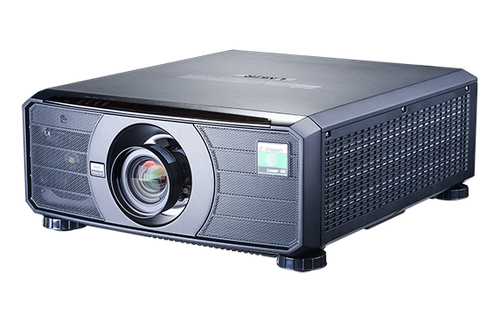

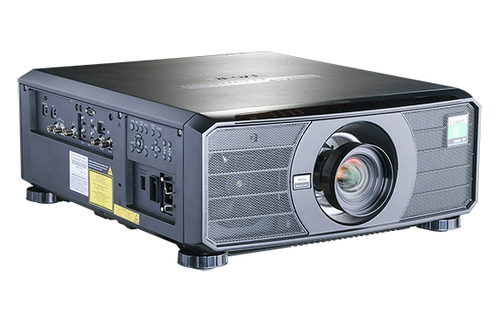

DIGITAL PROJECTION E-Vision Laser 13000 WUXGA - WUXGA (1920 x 1200), 13.500 Lumens, 10.000:1 Contrast (dynamic)
Hinnat näkyvät vain verkkokauppaan kirjautuneille käyttäjille.
|
DIGITAL PROJECTION E-Vision Laser 13000 WUXGA - WUXGA (1920 x 1200), 13.500 Lumens, 10.000:1 Contrast (dynamic)
WUXGA (1920 x 1200), 13.500 Lumens, 10.000:1 Contrast (dynamic)
|
Kuvaus
Tarvikkeet
Tuki info / Lataa
✓ 13,500 ISO / 12,000 ANSI Lumens ✓ 10,000:1 Dynamic Contrast ✓ WUXGA Resolution
12,000 ANSI / 13,500 ISO Lumens | Contrast Ratio: 10,000:1 (Dynamic Black) 1,000:1 native | Part Number: 119-734
Colour System: | DMD Specification:
|
Blue and Red Lasers with Phosphor wheel and 3-segment colour wheelDisplay Type:
| 1 x 0.67" DarkChip™ DMD™ |
| 1920 x 1200 pixels native display. Fast transit pixels for smooth greyscale and improved contrast. Aspect Ratio: 16x10 Fill Factor 87% |
Key Features
Red Laser Assist
- Uses blue and red laser diodes for increased colour fidelity and highly accurate colurs
Video & Graphics Processing
- HDMI 1.4b for Side by Side, Frame Packing, Frame Sequential & Top Bottom 3D formats.
- Dual Flash Processing can be used to multiply the displayed frame rate for 3D sources
- Dual Pipe Processing: Two sources in parallel for Left and Right eyes.
- Synchronisation of active glasses.
- 3GSDI with loop-through.
- 24p and 1080p native display.
- DICOM simulation mode.
Geometry Correction
- Cornerstone, Vertical & Horizontal Keystone, Pincushion & Barrel, and Image Rotation.
- Blanking control for custom input window sizing.
- Scaling for fixed aspect ratio screens.
Edge Blending
- For independent edge and blend width adjustment.
Picture in Picture
- Two sources can be displayed either one within the other (PIP), or side by side, with original aspect ratios maintained.
HDBaseT® Interface
- Built in support for reception of uncompressed High Definition Video over standard CAT5e/6 LAN cable.
- Allows the projector to be placed up to 100m from the source with low cost cabling.
Colour Processing
- Powerful seven point colour correction for accurate colour matching.
Projector Controller Software
- Intuitive user interface for network control
- Simultaneous control of user-defined groups of projectors
- At-a-glance monitoring of projector status
Projector Automation
- Real-time clock provides daily on/off automation.
Projector Maintenance Features
- Sealed optics.
- Long life 20,000 hour illumination.
|
Source Compatibility:
|
3GSDI is SMPTE 292M, SMPTE 259M-C and SMPTE 424M compliant. HDMI including Deep Color™ processing. Graphics standards up to 1920 x 1200 resolution at 60Hz via HDMI, DisplayPort or VGA. Component Video (SD and HD) via RGBHV. |
Inputs/Outputs
Video & Computer |
Type | Connector | Qty |
DVI-D 1.0 DisplayPort 1.1a HDMI 1.4b 3G-SDI in 3G-SDI out VGA / Analog RGB VGA Monitor out Component Video HDBaseT (see LAN) | DVI DisplayPort HDMI BNC BNC 15-pin D-Sub 15-pin D-Sub 5 x BNC LAN RJ45 | 1 1 2 1 1 1 1 1 1 |
Communication & Control |
Type | Connector | Qty |
3D Sync Out 3D Sync In LAN RS232 Wired Remote 12V Trigger
NOTE: The LAN port is shared with HDBase-T. | BNC BNC RJ45 9-pin D-Sub 3.5mm Stereo Jack 3.5mm Stereo Jack | 1 1 1 1 1 2 |
3D Formats Supported | HDTV Formats Supported |
Frame Packing Dual Pipe Frame Sequential Side By Side (half) Top and Bottom | 1080p (24Hz, 25Hz, 30Hz, 50Hz, 60Hz),1080i (50Hz, 60Hz), 720p (50, 60Hz) |
Computer Compatibility | Bandwidth |
Up to 1920 x 1200 | 165 MHz on analog RGB 165 Megapixels per second on HDMI |
Remote Control | Automation Control |
Addressable IR remote control, wireless and wired. On-Board keypad. | Crestron RoomView® Connected PJLink Class 1 LAN RS-232 AMX (Device Discovery) Served web page |
Colour Temperature | Operation |
3200 to 9300K |  |
illumination Type | Typical illumination Life |
Blue and Red Laser Light Source | 20,000 hours |
Lenses |
Lens | Part No. | Optimised Focus Range*
| Lens Shift |
0.38 :1 fixed | 117-341 | 0.68m - 2.44m | Depends on image size, see Installation Guide. |
0.75 - 0.93 :1 zoom | 115-339 | 1.02m - 12.7m | Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame |
0.76 :1 fixed | 112-499 | 0.81m - 5.08m | none |
1.25 - 1.79 :1 zoom | 112-500 | 1.33m - 11.73m | Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame |
1.73 - 2.27 :1 zoom | 112-501 | 1.83m - 14.9m | Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame |
2.22 - 3.67 :1 zoom | 112-502 | 2.36m - 24.2m | Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame |
3.58 - 5.38 :1 zoom | 112-503 | 3.8m - 35.35m | Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame |
5.31 - 8.26 :1 zoom | 112-504 | 5.59m - 54.8m | Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame |
* Lens focal ranges above are the optimised distances but are likely to focus further, please contact your RSM for more details. Lens ratio tolerances: E-Vision Series: +/-3%. HighLite Series: +/- 5%. M-Vision Series: +/- 2%. Titan Series: +/-2%, INSIGHT Series: +/-2%,
Lens Mount |
Motorised and programmable shift, zoom and focus. Intelligent Lens Memory with 10 user-definable preset positions (except UST lens). |
Mechanical Mounting | Orientation |
Front/Rear Table Front/Rear Ceiling Adjustable Front/Rear Feet | Table Top or Inverted: Yes Pointing Up: Yes Pointing Down: Yes Roll (Portrait): Yes |
Power Requirements | Power Consumption |
200-240VAC 50/60Hz single phase 7.8A 100-130VAC 50/60Hz single phase 11.5A Note: that in 100-130VAC operation, the projector will be at 70% brightness | Typical 1470W @ 240VAC in Normal mode Typical 1220W @ 240VAC in ECO mode Typical 1510W @ 240VAC in High Altitude mode Typical 1060W @ 110VAC in Normal mode Typical 1050W @ 110VAC in ECO mode Typical 1110W @ 110VAC in High Altitude mode |
Thermal Dissipation | Fan Noise |
Typical 5016 BTU/Hour @ 240VAC in Normal mode Typical 4163 BTU/Hour @ 240VAC in ECO mode Typical 5152 BTU/Hour @ 240VAC in High Altitude mode Typical 3617 BTU/Hour @ 110VAC in Normal mode Typical 3583 BTU/Hour @ 110VAC in ECO mode Typical 3787 BTU/Hour @ 110VAC in High Altitude mode | Normal mode: 48 dBA Max, 46 dBA Typical Eco mode: 44 dBA Max, 42 dBA Typical High Altitude Normal mode: 59 dBA Max, 57 dBA Typical High Altitude Eco Mode: 59 dBA Max, 57 dBA Typical |
Operating/Storage Temperature | Operating Humidity |
Operating: 0 to 35C (32 to 95F) Operating: 35 to 40C (95 to 104F) w/ reduced light output Storage: -20 to 60C (-4 to 140F) | 10 to 90% relative, non-condensing |
Weight (Chassis Only) | Dimensions |
31 kg 68.3 lb | L: 59.83 cm x W: 50 cm x H: 21.85 cm L: 23.55 in x W: 19.68 in x H: 8.60 in |
Safety & EMC Regulations | |
UL / cUL, BIS, CB, CCC, KC, FCC (Part 15) Class A, FDA (Accession Number),CE, RoHS 2, IEC EN 60825-1-2014 Class 3R Laser Product, IEC EN 60825-1-2007 Class 1 Laser Product IEC EN 62471-5-2015 Risk Group 3 | |
Accessories |
Accessory | Part No. |
Infrared Remote (replacement) | 117-780 |
*Dimensions included for reference only and are subject to change. Please download the full set of CAD files for this display for more accurate information.
