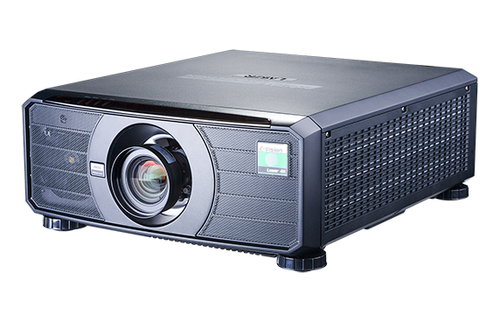

DIGITAL PROJECTION E-Vision Laser 11000 4K-UHD - 4K-UHD (3840x2160), 10.500 Lumens, 6.000:1 Contrast (dynamic)
Etusivu
Projektorit
4K/UHD
DIGITAL PROJECTION E-Vision Laser 11000 4K-UHD - 4K-UHD (3840x2160), 10.500 Lumens, 6.000:1 Contrast (dynamic)
Hinnat näkyvät vain verkkokauppaan kirjautuneille käyttäjille.
|
|
DIGITAL PROJECTION E-Vision Laser 11000 4K-UHD - 4K-UHD (3840x2160), 10.500 Lumens, 6.000:1 Contrast (dynamic)
4K-UHD (3840x2160), 10.500 Lumens, 6.000:1 Contrast (dynamic)
|
Kuvaus
Tarvikkeet
Tuki info / Lataa
✓ 10,500 ISO Lumens / 9,500 ANSI Lumens ✓ 6,000:1 Dynamic Contrast Ratio ✓ 4K-UHD Resolution
9,500 ANSI / 10,500 ISO Lumens | Contrast Ratio: 6,000:1 (Dynamic Black) 1,000:1 native | Part Number: 119-735
| Colour System: | DMD Specification:
|
Laser Phosphor with enhanced colourwheelDisplay Type:
| | 1 x 0.67" WQXGA+ TRP UHD DMD™ |
| Display resolutions 4K-UHD (3840 x 2160)
or WQXGA+ (2716 x 1528)
8.3 megapixels on screen at 4K-UHD
Fast transit pixels for smooth greyscale and improved contrast.
Aspect Ratio:
16:9
Fill Factor
Not applicable: Smooth Picture DMD™ |
Key Features
Video & Graphics Processing
- HDR processing
- Two projectors in one - 4K-UHD and WQXGA+
- DisplayPort 1.2 with HDCP 2.2
- 2 x HDMI 2.0 with HDCP 2.2
- 2 x HDMI 1.4b inputs with HDCP 1.4 for Dual Pipe processing and Frame Sequential 3D Format.
- Sequential Processing: 3D via single HDMI 1.4b input
- Dual Pipe Processing: 3D Left and Right Eyes via two HDMI 1.4b inputs
- Synchronisation of active glasses
- 3G-SDI with loop-through
- DICOM simulation mode
Geometry Correction
- Onboard 4-Cornerstone, Vertical & Horizontal Keystone, Pincushion & Barrel, Arc, and Image Rotation
- User definable custom warp
- Digital zoom, pan and scan.
- Independent four boundary blanking control for custom input window sizing
- Scaling available for fixed aspect ratio screens.
- Unscaled processing for pixel mapped display.
Edge Blending
- Blending control available for all sides with width control.
- Correction for non-active pixels at the edge of the display.
Picture in Picture
- Two sources can be displayed simultaneously using 2D inputs with the original aspect ratios maintained
HDBaseT® Interface
- Built in support for reception of uncompressed High Definition Video over standard CAT5e/6 LAN cable
- Allows projector to be placed up to 100m from source with low cost cabling
- Supports up to 4K UHD 3840 x 2160@60Hz 4:2:0 or 4K UHD 3840 x 2160@30Hz 4:4:4
Colour Processing
- Four colour modes available: ColorMax / Manual Color Matching / Color Temperature / Gains and Lifts
- Powerful seven point colour correction for accurate colour matching with presets
- Easy colour temperature selection
- Manual seven point colour adjustment
- Traditional lifts and gains
Projector Controller Software
- Intuitive user interface for network control
- Simultaneous control of user-defined groups of projectors
- At-a-glance monitoring of projector status
Projector Automation
- Real-time clock provides daily on/off automation
- E-mail alerts for system status
|
Source Compatibility:
|
2D graphics standards up to 4K-UHD 3840 x 2160 resolution at 60Hz via HDMI 2.0, HDBaseT (4:2:0) and DisplayPort inputs.
3D graphics standards up to WQXGA at 120Hz DualPipe via HDMI 1.4b inputs.
3GSDI is SMPTE 292M, SMPTE 259M-C and SMPTE 424M compliant.
WQXGA+ mode
2D sources up to WQXGA+ at 120Hz can be displayed scaled to fit WQXGA+.
3D sources up to WQXGA at 120Hz can be displayed scaled to fit WQXGA+.
4K-UHD mode
2D sources up to 4K-UHD will be displayed scaled to fit 4K-UHD.
Auto mode
Sources greater than WQXGA+ will be displayed scaled to fit 4K-UHD.
Sources up to WQXGA+ will be displayed scaled to fit WQXGA+. |
Inputs/Outputs
| Video & Computer |
Type | Connector | Qty |
DisplayPort 1.2 (2D)
HDMI 1.4b (3D)
HDMI 2.0 (2D)
3G-SDI in (2D)
3G-SDI out
HDBaseT (see LAN) (2D) | DisplayPort
HDMI
HDMI
BNC
BNC
RJ45 | 1
2
2
1
1
1 |
| Communication & Control |
Type | Connector | Qty |
3D Sync Out
3D Sync In
LAN
RS232
Wired Remote
12V Trigger
3D Sync IR Out
NOTE: One of the LAN ports is shared with HDBase-T. | BNC
BNC
RJ45
9-pin D Sub
3.5mm Stereo Jack
3.5mm Stereo Jack
BNC | 1
1
2
1
1
2
1 |
| 3D Formats Supported | HDTV Formats Supported |
Frame Sequential
Dual-Pipe | 1080p (24Hz, 25Hz, 30Hz, 50Hz, 60Hz, 100Hz, 120Hz)
1080i (50Hz, 60Hz)
720p (50, 60Hz)
2K (24Hz, 25Hz, 30Hz, 50Hz, 60Hz)
4K-UHD (24Hz, 25Hz, 30Hz, 50Hz, 60Hz) |
| Computer Compatibility | Bandwidth |
2D
4K-UHD up to 60Hz.
WQXGA+ up to 120Hz.
3D
Supported formats will be displayed within WQXGA+. | 498 megapixels per second via DisplayPort and HDMI 2.0. |
| Remote Control | Automation Control |
Addressable IR remote control, wireless and wired.
On-Board keypad | Crestron RoomView® Connected
PJLink Class 1
LAN
RS232
AMX (Device Discovery)
Served web pages (projector status, projector control, Crestron RoomView®, network settings, alert mail setup, time setup, error log, On Screen Display) |
| Colour Temperature | Operation |
| 3200K to 9300K |  |
| illumination Type | Typical illumination Life |
| Laser Light Source | 20,000 hours |
| Lenses |
Lens | Part No. | Optimised Focus Range*
| Lens Shift |
| 0.38 :1 fixed | 117-341 | 0.68m - 2.44m | Depends on image size, see Installation Guide. |
| 0.74 - 0.93 :1 zoom | 115-339 | 1.02m - 12.7m | Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame |
| 0.76 :1 fixed | 112-499 | 0.81m - 5.08m | none |
| 1.24 - 1.78 :1 zoom | 112-500 | 1.33m - 11.73m | Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame |
| 1.71 - 2.25 :1 zoom | 112-501 | 1.83m - 14.9m | Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame |
| 2.2 - 3.67 :1 zoom | 112-502 | 2.36m - 24.2m | Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame |
| 3.54 - 5.36 :1 zoom | 112-503 | 3.8m - 35.35m | Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame |
| 5.24 - 8.27 :1 zoom | 112-504 | 5.59m - 54.8m | Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame |
* Lens focal ranges above are the optimised distances but are likely to focus further, please contact your RSM for more details. Lens ratio tolerances: E-Vision Series: +/-3%. HighLite Series: +/- 5%. M-Vision Series: +/- 2%. Titan Series: +/-2%, INSIGHT Series: +/-2%,
| Lens Mount |
Motorised and programmable shift, zoom and focus.
Intelligent Lens Memory with 10 user-definable preset positions (except UST lens). |
| Mechanical Mounting | Orientation |
Front/Rear Table
Front/Rear Ceiling
Adjustable Front/Rear Feet | Table Top or Inverted: Yes
Pointing Up: Yes
Pointing Down: Yes
Roll (Portrait): Yes |
| Power Requirements | Power Consumption |
| 100-130VAC and 200-240VAC selectable, 50/60Hz single phase | 100V_60HZ Typical: 1344W, Maximum TBDW
240V_50HZ Typical: 1290W , Maximum TBDW |
| Thermal Dissipation | Fan Noise |
Typical 4590 BTU/Hour @ 100VAC
Typical 4406 BTU/Hour @ 240VAC | Smooth Picture On:
Normal mode: typical 43 (max 45) dBA
Eco mode: typical 39 (max 41) dBA
Smooth Picture Off:
Normal mode: typical 42 (max 44) dBA
Eco mode: typical 38 (max 40) dBA |
| Operating/Storage Temperature | Operating Humidity |
Operating: 5 to 40C (41 to 104F)
Storage: -10 to 60C (14 to 140F) | 10 to 85% non-condensing ((with maximum temperature of 40C ) |
| Weight (Chassis Only) | Dimensions |
31 kg
63.34 lb | L: 59.83 cm x W: 50 cm x H: 21.85 cm
L: 23.55 in x W: 19.68 in x H: 8.60 in |
| Safety & EMC Regulations | |
| UL/cUL, BIS, CB, CCC, CQC Eco label, CECP, KC, KTL, IC,BSMI, RoHS (China), RoHS (EU),FCC Class A, FDA,CE, IEC EN 60825-1 Class 3R Laser Product, IEC EN 62471-5 Risk Group 2, WEEE (EU), PSE, UKCA | |
| Accessories |
| Accessory | Part No. |
| Infrared Remote (replacement) | 117-880 |
*Dimensions included for reference only and are subject to change. Please download the full set of CAD files for this display for more accurate information.
