CYP 5-Play HDBaseT Transmitter - VGA/HDMI Wallplate (inc. PoH & single LAN, up to 100m
VGA/HDMI Wallplate (inc. PoH & single LAN, up to 100m
|

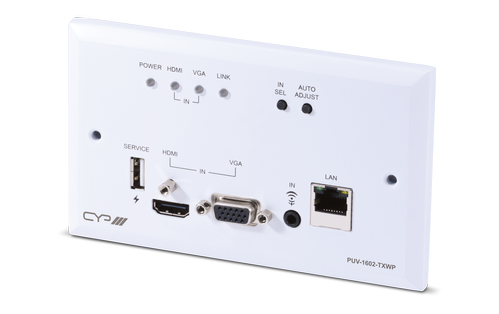

PUV-1602TXWP HDMI/VGA over Single CAT5e/6/7 HDBaseT™ Wallplate Transmitter (full 5-Play™ & Single LAN up to 100m, PoH)
PUV-1602TXWP
The PUV-1602TXWP Wallplate Transmitter is a HDMI/VGA switch which allows uncompressed HDMI and VGA signals to be transmitted over a Single CAT5e/6/7 cable. This solution has the added features of analogue audio em-bedding, RS-232 and 2-way IR control functionality over the same CAT5e/6/7 cable. These combined HDMI and control signals can be transmitted up to lengths of 100 metres to a compatible PUV 1600 Series Receiver.
This unit also supports automatic input detection between the HDMI and the VGA inputs using hot plug detection, offering the user 'hands free' control of the device. Despite the 10.2Gbps bandwidth limitation of HDBaseT this clever transmitter will automatically convert signals of higher bandwidths ensuring any HDMI 4K signal can be passed through the HDBaseT system. The unit also features push button control on the front of the panel. The unit is powered by PoH supplied by a compatible PUV-1600 series receiver. The wall plate is designed to integrate within a standard UK double gang back box.
Features:
- HDMI 2.0 and DVI 1.0 compatible
- HDCP 2.2 Compliant
- 1 x HDMI Input
- 1 x VGA Input with 3.5mm mini-jack analogue audio input
- Automatic conversion of 4K @ 50/60Hz HDMI sources to 4K@30Hz (4:4:4 8-Bit) for transmission over HDBaseT
- Supports VGA input resolutions up to WUXGA (RGB)
- PoH (Power over HDBaseT) Support
- Auto Switching
- Standard UK Double Gang Backbox Size
- Front panel push button control
- Front panel LED's to indicate Input Selection, link status and power
- USB Service port (Also provides 5v 1A power capability for charging mobile devices)
Specifications:
Inputs
- 1x HDMI [1x HDMI Uncompressed AV and Data]
- 1x 15pin Dsub [1x VGA RGBHV]
- 1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]
- 1x RJ45 [1x LAN Serving]
Outputs
- 1x RJ45 [1x HDBaseT HDMI & Propriety Data]
POE PSU:
PSU:
Dimensions
- 87mm [W] x 147mm [D] x 41mm [H]
Net Weight
Gross Weight
