Briteq RICO-V8 Mk2

Hinnat näkyvät vain verkkokauppaan kirjautuneille käyttäjille.

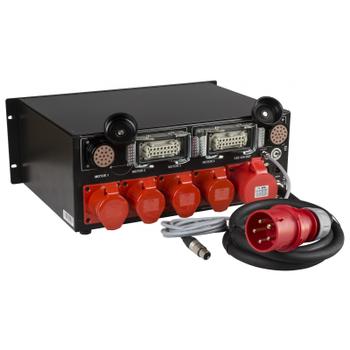

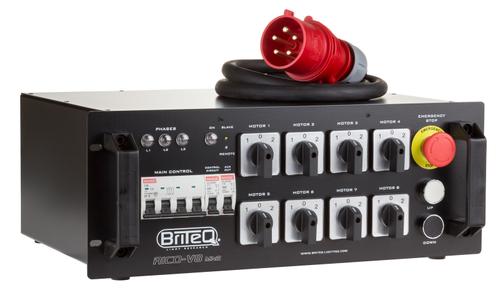

Briteq RICO-V8 Mk2 (B07005)
Briteq RICO-V8 Mk2 (B07005)
Briteq RICO-V8 Mk2 (B07005)
Briteq RICO-V8 Mk2 (B07005)

Briteq RICO-V8 Mk2

Tuotekoodi:
B07005

8 channel direct control chain hoist motor controller with separate UP/DOWN-controls and master/slave linking
Euroopan Varastossa (Saatavilla 7 - 10 pv)
Kuvaus

  • Standalone manual chain hoist motor controller for up to 8 separate motors.
  • Double safety by using an additional relay backup system that activates in critical situations.
  • Fully compatible with the previous RICO-V4 / RICO-V8 models!
  • Several units can be linked in master/slave using the link in/out on the back panel:
    • Easy control for a larger number of chain hoists
    • Simultaneous hoist control using the UP/DOWN buttons on the master controller
    • Centralized Emergency stop on the master controller
    • “Slave” indicator led
  • Manual phase inversion switch for each output.
  • Choice of different outputs for maximum flexibility (rental companies!):
    • 4x individual CEE16 4pole 16A outputs
    • 2x 16PIN multichannel industrial rectangular connector, Harting® compatible
    • 2x 19PIN multichannel industrial round connector, Socapex® compatible
    • 1x earthed 16A PowerCON mains outlet: auxiliary output for all kinds of use
  • Remote control input (XLR) with led indicator to connect the optional RICO-REMOTE.
  • Phase indicators to easily check if the 3phases are available.
  • 32A 4pole circuit breaker protects ALL outputs, including the 32A output to the next unit. In case of emergency all 3 phases AND the neutral are disconnected.
  • C16 (16A - 1P+N) 2-POLE automatic circuit breaker for control circuit.
  • Auxiliary output protected by a 16A RCBO with 30mA leakage current protection.
  • Mains input cable (3x 32A, 5wire), equipped with CEE (3P+N+E) 32A inlet plug.
  • CEE (3P+N+E) outlet socket (3x 32A, 5wire) for bypass.
  • Extremely robust 19"/4U metal housing.
  • Designed and build in Europe to the highest international safety standards!
  • Fully complies to EU directives: 2014/35/EU (LVD) and 2014/30/EU (EMC):
    • EN 60204-32:2008 (safety of machinery - Part 32: requirements for hoisting machines)
    • EN 60204-1:2018 (safety of machinery - Part 1: General requirements)
    • EN IEC 61000-6-2:2019 (EMC - Immunity standard for industrial environments)
    • EN IEC 61000-6-4:2019 (EMC - Emission standard for industrial environments)
