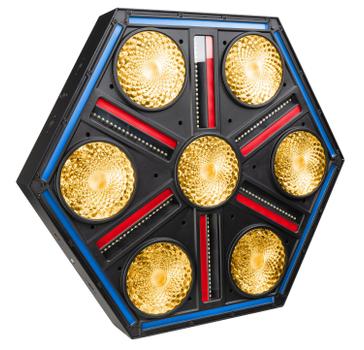

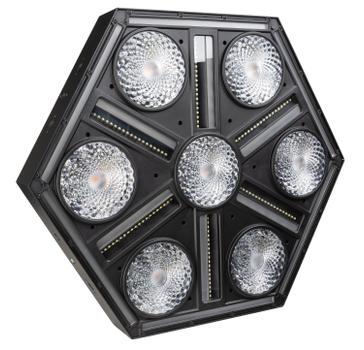

Briteq BTX-SKYRAN

• This impressive new effect projector is developed for use on concert stages, TV-studios, …
• Hexagonal eye candy multi effect fixture: Blinder, strobe and RGB pixel mapping effects: all-in-1:
  • 7 powerful 80W WW+A COB LEDs, behind beautiful flower lenses, emulate powerful classic tungsten blinders
  • 6 powerful strobe lines with totally 120 individual addressable high efficiency 3W white LEDs
  • Extensive RGB section with 604 individually addressable 0.5W RGB LEDs divided into 3 zones:
    • RGB LEDs behind the blinder lenses create stunning and dynamic aura effects
    • 6 dynamic RGB pixel lines mark the contours of the effect projector
    • 6 additional RGB pixel lines create amazing star-shaped effects
• Full pixel control via Art-Net or sACN or through the internal, DMX-controlled, effects engine.
• Uses 13, 21, 58, 33, 36, 136, 156 or 1952 DMX channels + RDM-functionality for easy remote setup.
• Led refresh rate selectable between 1200Hz and 4800Hz.
• Quick lock system for easily mounting multiple units together in an attractive grid.
• OLED with touch buttons for easy navigation.
• 3 and 5pin DMX in/out + RJ45 in/out.
• Seetronic IP65 True1 compatible power in/outputs
• Easy software upgrades can be done using the RJ45 network input.
• Designed for use with Briteq OMEGA BRACKET SMALL for quick installation.

Note: registered model design n° 015053924-0001
