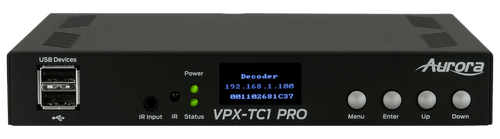

Aurora Multimedia Next-gen 4K60 4:4:4 1Gbps AV-over-IP transceiver
Hinnat näkyvät vain verkkokauppaan kirjautuneille käyttäjille.
|
|
Aurora Multimedia Next-gen 4K60 4:4:4 1Gbps AV-over-IP transceiver
4K60 4:4:4 UHD 120m over 1G CAT 5e .One Frame Latency (16.6ms) . Low Power Fanless Design. Seamless Switching. Video Wall with Image Rotation .1G LAN PoE and SFP for Fiber or Second RJ-45. 2 HDMI Inputs, 1 HDMI Output
|
Features
- Configure as Encoder or Decoder
- 4K60 4:4:4 UHD 120m over 1G CAT 5e
- Zero Frame Latency (1.78ms)
- HDMI 2.0b, HDCP 2.2
- HDR10, HDR10+, Dolby Vision
- LPCM up to 12-channels, Dolby Digital Plus, Dolby TrueHD DTS HD Master Audio & ATMOS
- 12 bits color depth processing, 16bits OSD
- Enterprise Security (AES 256, 802.1x, HTTPS, & SSH)
- Low Power Fanless Design
- Scaling & Seamless Switching
- MJPEG Preview up to 720p30
- Video Wall with Image Rotation
- 1G LAN PoE and SFP for Fiber or 2nd RJ-45
- 2 HDMI Inputs, 1 HDMI Output
- Line In/Out Stereo
- RS-232 Serial Port and IR (In/Out)
- Channel Mapping with On-Screen Preview
- Integrated Web Server for Configuration
- USB 2.0 Ports for Cameras, HID Devices, Mass Storage, etc.
- AES67 Included
- Dante® 2 Ch Audio License Option
- Rack and Under Table Mounting
Technical
| Compression | Mimix™ 13:1 |
| Latency | 0 Frame (1.78ms) with Ultra Low Latency Mode |
| HDMI Inputs | 2 (HDMI 2.0b, HDCP 2.2) |
| HDMI Outputs | 1 (HDMI 2.0b, HDCP 2.2) |
| Encryption | AES 256 |
| Analog Audio | Stereo Line In/Out (3.5mm TRS) |
| 1G Ethernet | RJ-45 and SFP |
| LAN | RJ-45 10/100/1000 PoE |
| Video Bandwidth | 600MHz |
| Video Support | Up to 4K2K 4:4:4 @ 60Hz |
| Audio Support | Up to 12 Channels |
| RS-232 | Up to 115k Baud (3.5mm TRS) |
| IR | Bi-Directional (3.5mm TRS) |
| USB Connector | 1 USB 2.0 Type C 1 USB 1.1 Type C 1 USB 2.0 Type A 2 USB 1.1 Type A |
| Options | Dante® 2Ch License |
| Interface | IR or Keyboard via OSD, Web Server |
Mechanical
| Housing | Black Aluminum Enclosure |
| Dimensions | 177.04 x 150.7 x 26.42mm [6.97” x 5.93” x 1.04”] |
| Weight | .453kg [1lbs] |
| Mounting | Optional: Rack Mount Vertical, Rack Mount Horizontal, Under Table Mount |
| Power Supply | 48v DC (2 Pin Euro) or PoE+ (LAN) |
| Power Consumption | 8 Watts, up to 12.9 Watts with USB |
| Operating Temperature | 0~40o C [32~104o F] |
| Storage Temperature | -20~60o C [-4~140o F] |
| Relative Humidity | 20~90% RH [No Condensation] |
Package Contents
| | 1x VPX-TC1, 2x Mounting Ears |
