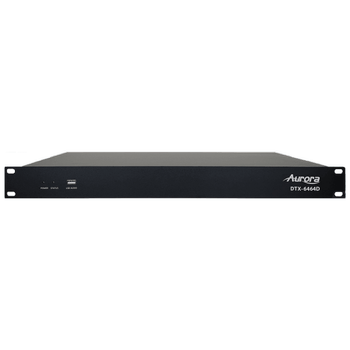

Aurora Multimedia 64x64 Dante DSP Aggregator
Hinnat näkyvät vain verkkokauppaan kirjautuneille käyttäjille.
|
|
Aurora Multimedia 64x64 Dante DSP Aggregator
Dante aggregation DSP Outstanding sound quality of 24bit/48kHz Customized operating software for flexible configuration End user interface for centralized control of multiple devices AFC (Automatic feedback suppression), AEC (Acoustic echo cancellation), ANS (Automatic noise suppression), ANC (Automatic noise gain compensation), AGC (Automatic gain control), gain sharing, threshold auto mix, ducking processing module
|
Features
- ADI SHARC 21489 processor
- 2 Dante audio interfaces on RJ-45 connectors
- 8 GPI/O multi-function ports on Terminal Block connectors
- Dante audio channels up to 64×64
- Definable GUI for managing and confgurating multiple units
- All Inputs and Outputs support a full suite of audio shaping tools
- 8 preset slots to store all configuration data for easy recall
- Built-in USB sound card for recording and playing digital audio
- DSP Confgurator software tool for managing all audio operations
Audio
| ADSP | ADI SHARC 21489 (×2) |
| Audio Format | 24 bits, 48 kHz sampling rates (uncompressed) |
| System Latency | < 6 ms |
| Analog I/O Channels | N/A |
| Dante I/O Channels | 64×64 |
| Analog Input Gain | N/A |
| Analog Input Level | N/A |
| Analog Output Level | N/A |
| Frequency Response | ±0 2 dB (20 Hz to 20 kHz) |
| THD+N | < 0 003% (1 kHz, +4 dBu) |
| Common Mode Rejection Ration | 80 dB (60 Hz) |
| SNR | 110 dB |
| Analog Dynamic Range | N/A |
| Dante Dynamic Range | 115 dB |
| Analog Background Noise | N/A |
| Dante Background Noise | -91 dBu (A-weighted) |
| Channel Isolation | 108 dB (1 kHz) |
| Input Impedance | 9 4k ohms (Balanced) |
| Output Impedance | 102 ohms (Balanced) |
| |
Interface
| Input | N/A |
| Output Port | N/A |
| Ethernet Port | 2 Dante Audio (RJ-45) 1 LAN (RJ-45) |
| USB Port | 1 USB Audio (Type-A) |
| Serial Port | 1 RS-232 (Terminal Block) 1 RS-485 (Terminal Block) |
| GPI/O Port | 8 GPI/O (Terminal Block) |
Power
| AC Power | 110 to 240 VAC at 50 or 60 Hz |
| AC Adapter | N/A |
| Power Consumption | 15 W |
Enclosure
| Chassis Material | Metal |
| Chassis Color | Black |
| Chassis Dimensions (Hight×Width×Depth) | 45×482×260 mm |
| Chassis Weight | 3 kg |
Environment
| Operating Temperature | +32 to +104 °F (0 to +40 °C) |
| Humidity | 10% to 90% RH (non-condensing) |
Compliance
| Regulatory Compliance | FCC, CCC, CE, RoHS |
