Aurora Multimedia 4x4 Dante DSP with 4x4 analog in and out
Dante DSP with dedicated analog channels Outstanding sound quality of 24bit/48kHz Customized operating software for flexible configuration End user interface for centralized control of multiple devices AFC (Automatic feedback suppression), AEC (Acoustic echo cancellation), ANS (Automatic noise suppression), ANC (Automatic noise gain compensation), AGC (Automatic gain control), gain sharing, threshold auto mix, ducking processing module
|
Features
- ADI SHARC 21489 processor
- 4 balanced microphone or line level inputs on Terminal Block connectors
- 4 balanced line level outputs on Terminal Block connectors
- 2 Dante audio interfaces on RJ-45 connectors
- Dante audio channels up to 4×4
- Definable GUI for managing and configurating multiple units
- All Inputs and Outputs support a full suite of audio shaping tools including graphic and parametric EQ, dynamics, ducker, delay and more
- 16 preset slots to store all configuration data for easy recall
- Built-in USB sound card for recording and playing digital audio
- DASH software tool for managing all audio operations
- Supports adaptive echo cancellation (AEC), adaptive feedback control (AFC), automatic gain control (AGC), automatic mixture control (AMC), automatic noise suppression (ANS)

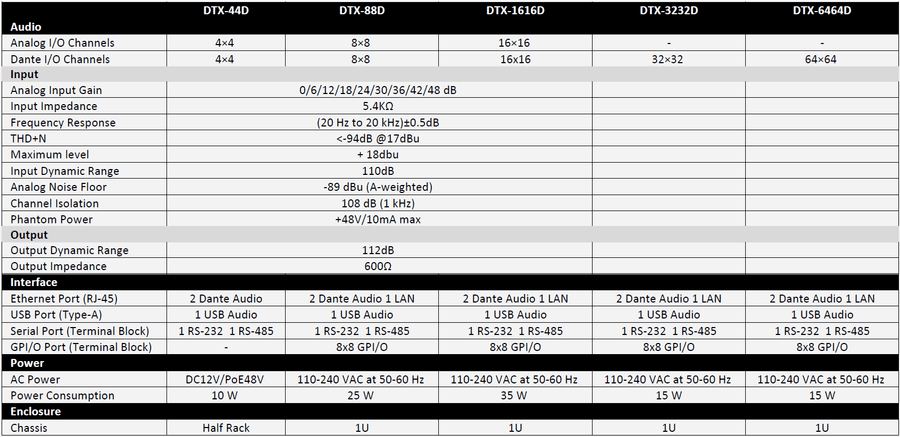

Audio
| ADSP | ADI SHARC 21489 (×1) |
| Audio Format | 24 bits, 48 kHz sampling rates (uncompressed) |
| System Latency | < 3 ms |
| Analog I/O Channels | 4x4 |
| Dante I/O Channels | 4x4 |
| Analog Input Gain | 0, 10, 20, 30, 40, 43 dB |
| Analog Input Level | +24 dBu |
| Analog Output Level | +24 dBu |
| Frequency Response | ±0 2 dB (20 Hz to 20 kHz) |
| THD+N | < 0 003% (1 kHz, +4 dBu) |
| Common Mode Rejection Ration | 103 dB @ 60Hz |
| SNR | 110 dB |
| Analog Dynamic Range | 113dB |
| Dante Dynamic Range | 113 dB |
| Analog Background Noise | -89 dBu (A-weighted) |
| Dante Background Noise | -91 dBu (A-weighted) |
| Channel Isolation | 108 dB (1 kHz) |
| Input Impedance | 20k ohms (Balanced) |
| Output Impedance | 100 ohms (Balanced) |
| Phantom Power | 48 V |
| | |
Interface
| Input Port | 4 Analog Audio (Terminal Block) |
| Output Port | 4 Analog Audio (Terminal Block) |
| Ethernet Port | 2 Dante Audio (RJ-45) 1 LAN (RJ-45) |
| USB Port | 1 USB Audio (Type-A) |
| Serial Port | 1 RS-232 (Terminal Block) 1 RS-485 (Terminal Block) |
Power
| AC Power | 110 to 240 VAC at 50 or 60 Hz |
| AC Adapter | 12 VDC or PoE |
| Power Consumption | 10w |
Physical
| Chassis Material | Metal |
| Chassis Color | Black |
| Chassis Dimensions (H x W x D) | 45×241×130 mm |
| Chassis Weight | 1.5kg |
Environment
| Operating Temperature | +32 to +104 °F (0 to +40 °C) |
| Humidity | 10% to 90% RH (non-condensing) |
Compliance
| Regulatory Compliance | FCC, CCC, CE, RoHS |
