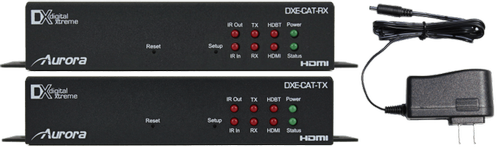

Aurora Multimedia 330/600ft - 1080P 60hz / 4K, 48 Bit Color, IR, RS-232 & Dual Lan Kit includes DXE-CAT-TX2-4K, DXE-CAT-RX2-4K & PS0080-1 Power Supply
Tuotekoodi:
DXE-CAT-S2-4K
With a single CAT 5e/6/7 cable, the DXE-CAT-S2 can go up to 330ft 1080p 60Hz / 4K 48bit color depth with bi-directional RS-232, IR, & LAN (up to 600ft at 24bit color depth with CAT 6a shielded cable)
|
Features
- Transmit HDMI up to 4K 30Hz 36bit 328ft over one CAT 5e/6/7 cable
- Transmit HDMI up to 1080p 60Hz 24bit 600ft over one CAT 6A shielded cable
- All connectors on one side for easier installation
- Bi-directional RS-232 & IR & LAN
- Power both units from TX or RX side with wall power supply or PoE
- Status LED for all connections on front
- Various mounting options
- Comes in a variety of models for different features & cost savings
Technical
| Max Distance | 330/600ft |
| Color Depth | 48bit 330ft (CAT5e) 24bit 600ft(CAT6A) |
| RS-232 | Max 115kbps |
| IR without LXC | 30k-60kHz |
| IR Output with LXC | 30Hz-100kHz |
| IR Input with LXC | 30k-60kHZ |
| LAN | (2) 10/100 ports |
| LAN PoE | Port 1 |
| Front LED Status | Power, Status, HDMI, HDBaseT, RS-232 TX/RX, IR In/Out |
| Front Selections | Reset |
| LAN Connectors | Dual 8P8C with 2 LED Indicators Each |
| HDBaseT Connector | RJ-45 WE/SS 8P8C |
| RS-232 Connector | 3.5mm TRS |
| IR Connector | 3.5mm TRS (Auto Sensing Direction for Blaster or Receiver) |
| HDMI Connector | Type A 19 pin |
| Power Connector | Diameter 1.35mm ID, 3.5mm OD |
Mechanical
| Housing | Black Aluminum Enclosure |
| Dimensions [L x W x H] | 120mm x 77mm x 27.94mm [4.72" x 3.03" x 1.1"] |
| Weight | 395g [14 oz] TX / 395g [14 oz] RX |
| Mounting | Wall Mounting and Rack Mounting |
| Power Supply | 24v 0.65A DC (Only 1 required on either TX or RX) |
| Power Consumption | 5 Watts (TX) 7 Watts (Rx) [max] |
| Operation Temperature | 0~40 C [32~104 F] |
| Storage Temperature | -20~60° C [-4~140° F] |
| Relative Humidity | 20~90% RH [No Condensation] |
Huomioi, että kuva on suuntaa-antava ja varsinainen tuote saattaa ulkoasultaan poiketa tuotekuvasta (esim. tietokoneisiin ei välttämättä sisälly näyttöä, vaikka kuvassa sellainen olisikin). Jos tuotenimikkeessä on eri tiedot kuin tuotekuvauksessa, tuotenimikkeen tieto on oikein. Jos jokin asia jää epäselväksi, lähetä sähköpostia tukeen ennen tuotteen tilaamista.
